| 液晶型号 |
行列点阵数 |
模块体积(mm) |
视域尺寸(mm) |
字符尺寸(mm) |
供电电压 |
控制器 |
PDF资料 |
液晶图片 |
| 3V |
5V |
| GDEP014TT1-1.43inch-Epaper |
198*296 dot |
18.3(H)*42.7(V)*0.607(D) |
14.464(H)*33.448(V) |
0.113(H)*0.113(V) |
✔ |
|
|
PDF文档 |
 |

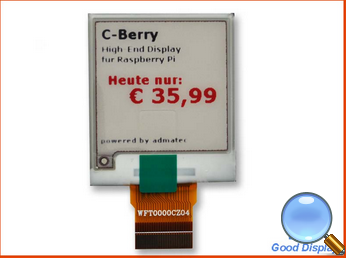

| GDEW0154Z04-1.54inch-E-paper-Three colors |
200(H)*200(V) dot |
31.8(H)*37.3(V)*1.05(D) |
27.6(H)*27.6(V) |
0.138*0.138 |
✔ |
|
|
PDF文档 |
 |

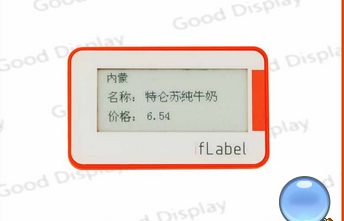

| IL021AF1W1-2.1 inch-E paper |
172*72 dot |
65.5*40.0*12.2mm |
48.7*20.9mm |
|
✔ |
|
|
PDF文档 |
 |

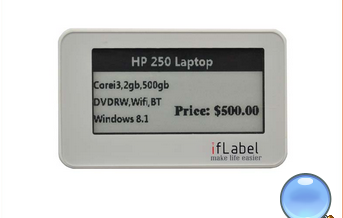

| ILE029A1-E-paper 2.9inch |
128*296 dot |
36.7*79.0*1.05 |
29.05*66.89 |
0.227*0.226 |
|
|
|
PDF文档 |
 |

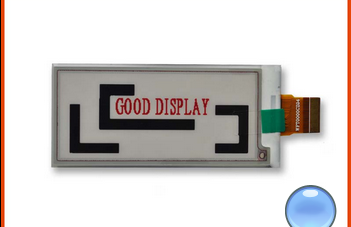

| GDEW029Z04 |
296*128 dot |
79.0*36.7*1.18 |
66.90*29.06 |
0.227*0.226 |
|
|
|
PDF文档 |
 |

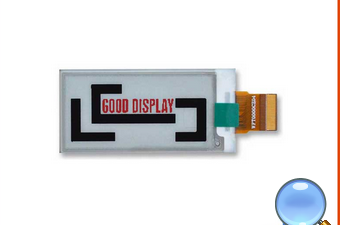

| IL0213CF3W5-E paper 2.13inch |
250*122 dot |
29.2*59.2*1.05 |
23.80*48.55 |
0.195*0.194 |
|
|
|
PDF文档 |
 |

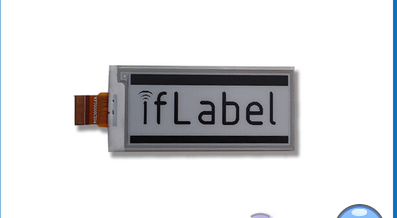

| GDEW0213Z04(Three colors)-E paper 2.13inch |
212*104 dot |
59.2*29.2*0.98 |
48.55*23.80 |
0.229*0.228 |
|
|
|
PDF文档 |
 |

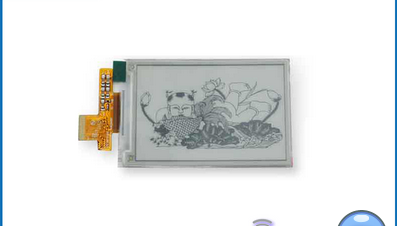

| ILE035A3 3.5inch E paper |
800*480 dot |
52.5*89.11*0.98 |
45.7*76.16 |
0.952*0.952 |
|
|
|
PDF文档 |
 |
| GDE043A2 4.3inch E paaer |
800*600 dot |
126.5*74.6*1.17 |
88.00*66.00 |
0.11*0.11 |
|
|
|
PDF文档 |
 |
